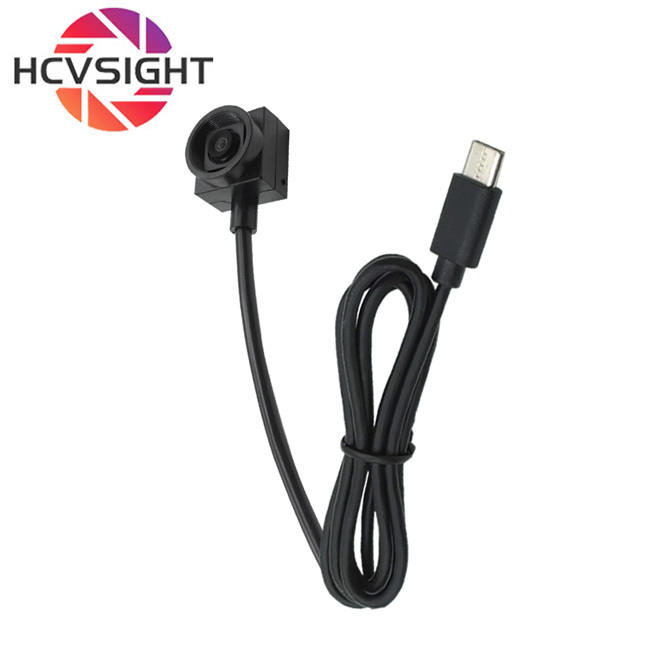

4k USB Camera Module Fixed Focus 8MP High-definition Industrial Monitoring Camera
Fixed focus wide-angle 110 ° surveillance camera
This fixed focal length 8-megapixel 4K ultra clear image camera. Featuring a 1.9mm wide-angle lens covering a 110 ° field of view, a 15x15mm miniature body design that supports synchronous audio and video output, a Type-C interface, and plug and play compatibility with laptops/tablets/smartphones, redefining the high-definition video solution for mobile devices.
Specifications Specification for Fixed Focus Lens.pdf
| sensor | 1/3.2" |
| Pixel | 8MP |
| Compression format | MJPG/YUV2 |
| Frame rate | 3264X2488 @ 15fps |
| Audio | support |
| Power frequency working voltage | DC 5V |
| Product size | 15mmx15mm |
| white balance | automatic |
| working temperature | <70° |
| Power consumption | 0.25w |
| model | HCU-GJ158(Type-c) |
| Interface type | Type-C interface |
| USB cable length | Default 1.2m |
| Lens | F.NO: 1.9mm |
| Focal length:2.2 |
| Distortion: <-8.7% |
| Component:4E+IR |
| Angle: 100° |
| Chip type | COMS |
| Support OS | Windows/Mac OS/Linux/Android |
Core functions of the product
1. High definition imaging: 8-megapixel high-definition resolution (resolution) 3264X2488 @15fps )Provide delicate image quality and accurately capture details.
2. Exquisite body: 15x15mm size,easy to install and carry.
3. Plug and play: Type-C interface (or optional USB 2.0, Android), compatible with operating systems (Windows, Mac, Linux, Android, etc.), Supports UVC protocol, plug and play, no need for additional drivers.
4. Adjustable image parameters: Support adjusting exposure, white balance, gain, contrast, saturation and other parameters through software to adapt to complex lighting scenes.
5. Industrial grade wide-angle lens: 1.9mm focal length, fixed focal length wide-angle of 110 °, wide field of view.
6. Audio: Built in microphone, supports synchronous compression and transmission of audio and video.
Professional customized services
We are well aware of the unique visual requirements of different applications and provide comprehensive OEM/ODM customization services to help you create differentiated products.
1. Lens customization: specific focal length, field of view angle, distortion control.
2. Customized casing: Design a dedicated casing, bracket, or fixing method based on the structure of your device.
3. Cable and Interface: Customize cable length and interface type (such as USB and Android).
4. Pixel customization: Different resolution and frame rate models are available (such as higher pixel 4MP,5MP, 8MP, 12MP).
Camera application field
Industrial automation and machine vision, precision equipment status monitoring, security monitoring, embedded intelligent access control/attendance systems, miniaturized concealed monitoring equipment, vehicle mobile monitoring, smart home security, endoscope assisted imaging, laboratory equipment monitoring, vehicle driving recorder (DVR), small traffic monitoring equipment, intelligent retail terminals, drone/robot visual perception, education/conference system cameras, various embedded devices that require compact visual solutions, Advertising machine, all-in-one machine, intelligent electronic scale, automatic welding equipment, fire water gun, external law enforcement instrument, external camera for Android phone, computer camera, high-speed camera etc.
|
|
